Products » IN FIELD » DG400-BT

DG400-BT

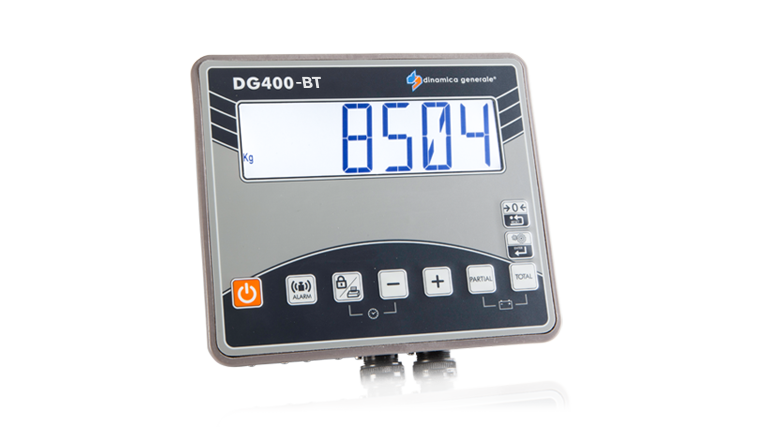

DG400-BT: Weight Indicator for Agricultural Machinery

The DG400-BT is a scalable digital weight indicator with integrated Bluetooth, supporting ISOBUS and CAN J1939 communication protocols.

It is one of the most versatile weighing solutions on the market, enabling connection to the tractor’s Virtual Terminal (VT), the FIELD scale app, and remote displays (weight repeater) for weight visibility anywhere on the machine.

Suitable for grain carts, spreaders, forage wagons, and seed tenders, it supports both OEM and retrofit installations without replacing existing load cells.

ISOBUS CANJ1939

REAL-TIME WEIGHT DATA

BLUETOOTH CONNECTIVITY

From weighing to traceability

The DG400-BT is the ideal OEM weighing solution for agricultural machinery, enabling manufacturers to start from a basic weighing system, upgrade to ISOBUS integration, and scale up to full digital traceability with FIELD scale app and FIELD trace. Designed for precision farming, it adapts to different markets, customer needs, and price points.

Harvest weighing & tracking app

The FIELD scale App connects wirelessly to the DG400-BT, allowing operators to record and manage weighing data directly from the tractor cab using a tablet or smartphone.

Data is captured automatically during operations, transforming weighing into a complete digital workflow:

  • Automatic recording of weight, date, and time
  • Real-time data collection in the field
  • Full load traceability from field to final destination
  • Automatic report generation

This integration improves efficiency, traceability, and data-driven decision making across harvesting and transport operations.

Harvest weight data on app

Have you ever imagined how DG400-BT
could boost your productivity?

Find out more!

Main Features

1

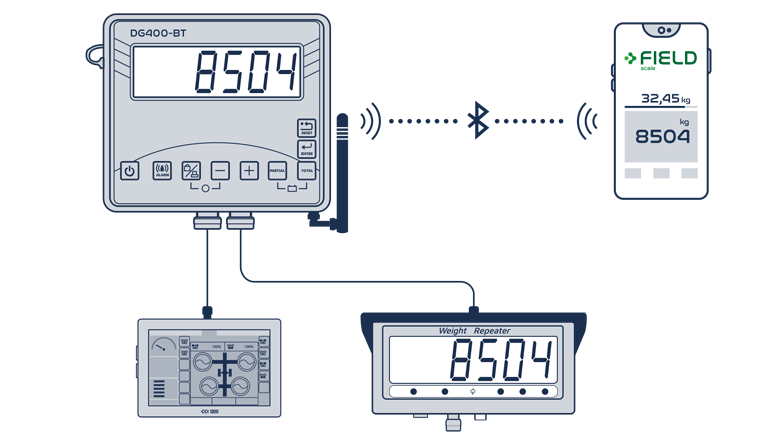

Flexible user interface

The DG400-BT offers a scalable user experience with multiple interface options:

  • ISOBUS Virtual Terminal (VT)
  • Remote display (weight transmitter)
  • Mobile interface via FIELD Scale App

This flexibility allows the system to adapt to different machine configurations and operator preferences.

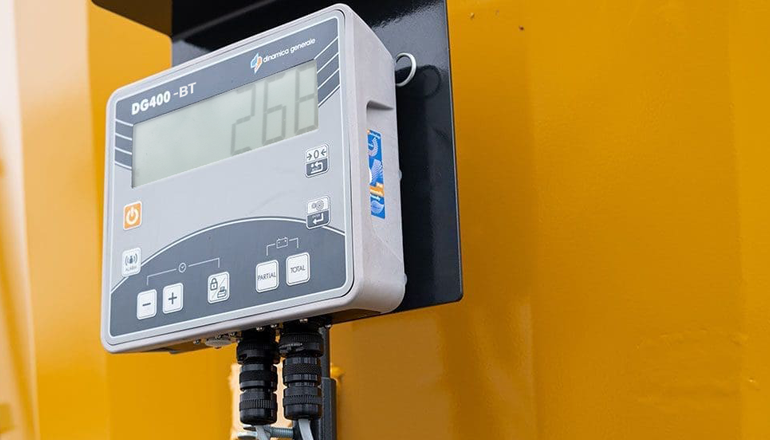

Plug & play installation

The system is designed for both OEM integration on new machines and aftermarket retrofit on existing equipment.

The DG400-BT can be installed using Dinamica Generale load cells or existing third-party load cells, eliminating the need for replacement. This ensures fast installation, reduced upgrade costs, and seamless integration across different machine types.

2

Application

Grain Cart

Grain Cart

+
Forage Wagon

Forage Wagon

+
Manure Spreader

Manure Spreader

+
Feed Mixer

Feed Mixer

+

All Benefits

All Benefits

Technical data

Display Visibility
More than 15 m (50 ft)
Range
0 - 999.999 f.s.
Ingress Protection
IP 68
Display Dimensions
45 mm (1.77 inches)
Display Type
LCD 6 digits (16 segments)
Accuracy
< +/- 0.015% f.s.
Power Supply
9.5 – 32 Vdc
Weight
1,9 kg (4.2 lbs)
Working Temperature
-30 / +65°C (-22 /+150°F) (-45°C / -49°F on request)
Case Dimensions
220 x 190 x 65 mm (8.7 x 7.5 x 2.6 inches)
Case Material
Nylon with Glass Fiber V0
Protocols
Bluetooth, Isobus, CAN J1939m rs232
